Grass America

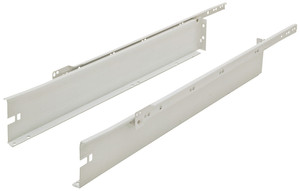

Grass Zargen Drawer Systems
100 lb Rated Integrated Metal Drawer Side/Slide SystemStandard Features:
- The Zargen integrated Euro drawer slide and metal side panel system is cost effective allowing users to assemble and install a drawer in two minutes
- Automatic production capable, the system significantly reduces the number of steps required to make a drawer
- Cabinet member design allows for use in 32mm cabinet construction for easy and accurate installations
- Cabinet maker provides drawer front, rear drawer panel and drawer bottom
- Built in self-closing feature automatically closes the drawer within a range of 2-5/8"
- The system allows for drawer fronts to be easily adjusted in three ways: height adjustment (+/- 2mm), side-to-side adjustment (+/- 1.5mm) and angle adjustment (+/- 1mm)
- Standard system is 7/8 extension, using item number GF6200, the slide system becomes fully extendable. Existing drawers do not have to be altered
- Drawer material thickness is 1.3mm and is in a white epoxy finish
- Drawer systems are available in:
- Five drawer side heights: 1-11/16", 3-3/8", 4-5/8", 5-7/8" and 8-3/8"
- Seven drawer depths: 10-5/8", 13-3/4", 15-3/4", 17-3/8", 18-1/2", 20-1/16" and 21-5/8"
