- Designed for both 32 mm side panel line boring systems and 45 mm door wing insertion systems.
- 9/32" (7.1 mm) reveal (A-D)
- 0.095 (2.4 mm) thick material

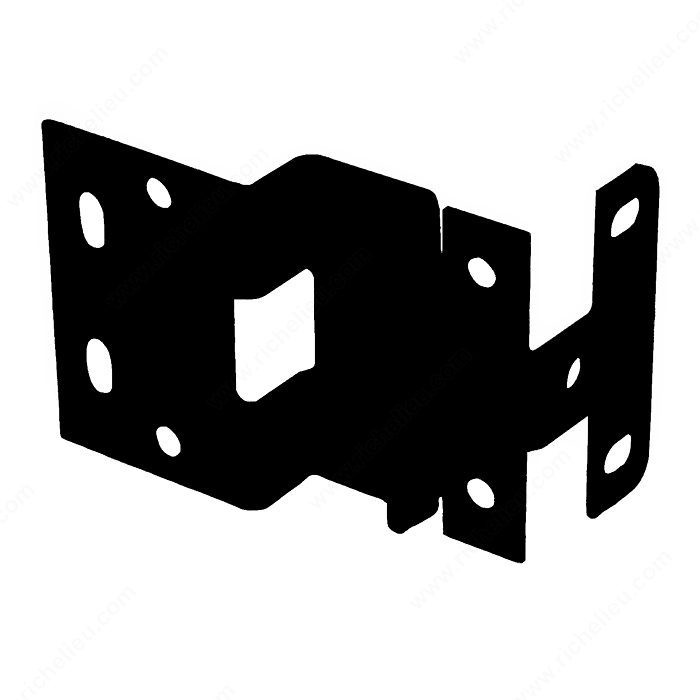

Finish Black
Door Thickness3/4 in
Type Institutional Hinge
Height2 3/4 in
Gauge2.4 mm
Hinge Overlay23/32 in
Door Overlay15/32 in
Hinge Opening Angle+270?
Offset3/4 in
Screw/Nail#8, Flat Head (not included)
Fixing Type Screw-On
Standards and CertificationsANSI/BHMA 156.9 Grade 1
Packaging format Pair
