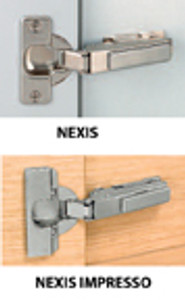

Grass Nexis Hinges with 95 degree opening for thick doors or doors with applied moldings and profiles are suitable for frameless and face frame applications
Stamped steel arm and die-cast steel hinge cup with bright nickel finish
Excellent weight capacity for heavy doors, special spring mechanism ensures excellent closing force with large doors
Minimal gap dimensions on thick doors
For door thickness up to 36mm (1-7/16") and overlays up to 23mm (7 / 8")
Nexis hinges for profile and large overlay doors have:
- Cup depths of 13.2mm
- Hinge cup edge drilling distance of 3mm to 10mm
- Single screw side-to-side adjustment of +1mm to -3mm
- Boring Pattern of 40mm
Available in "Screw-on" with two #6 x 5/8" screws (not included), cup fastening design
Nexis hinges are compatible with Grass soft-close devices illustrated
Nexis hinges are designed to work with Grass mounting plates
