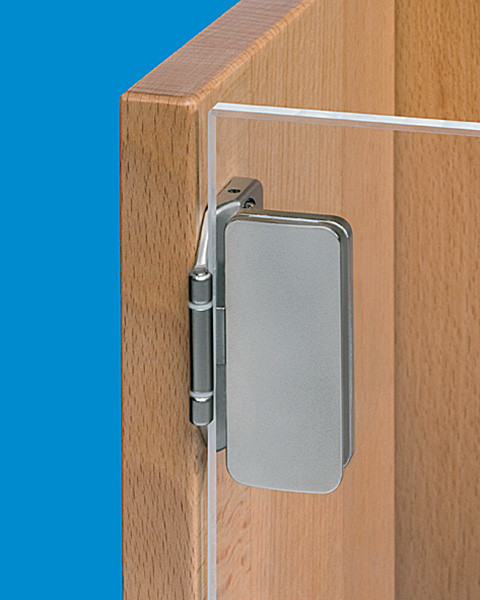

Glass Door Hinge, Grade 1, Non-bore, 220° for all-glass constructions, for glue fixing (UV glass adhesive bonds)

SKU:
344.89.080
$149.99
Write a Review
Current Stock:

for all-glass constructions, for glue fixing (UV glass adhesive bonds)

Item details

3-dimensionally adjustable for door alignment with millimeter accuracy.

For all-glass constructions

Application

For inset doors

Features

With exposed axle
with spring

For glass thickness

Max. (3/8") 10 mm
Opening angle depends on glass thickness

Material

Stainless steel V4A

Finish

Satin

Adjustment

Side adjustment: –2 mm
height adjustment: ±2 mm
depth adjustment: ±2 mm

Opening angle

Up to 220°, depends on glass thickness

Gap

2 mm

Installation

For glue fixing (UV glass adhesive bond)

Product Features

Supplied with

1 glass door hinge for glue fixing

1 set of installation instructions

1 mounting tool, T-star, VA
