Cam Lock for Panel Thickness up to 23 mm

Cam Lock for Panel Thickness up to 23 mm

$9.99
SKU: R:BP140100130

TECHNICAL SPECIFICATIONS

Product №
BP140100130
Panel Thickness
2 to 25 mm
Cylinder Diameter
19 mm
Cylinder Length
30 mm
Position
Reversible
Application
Single Drawer
Material
Zinc Alloy
Mechanism Type
Wafer
Key Turn Degree
90°
Cam Length (from center)
40 mm
Furniture Material
Wood
Standards and Certifications
RoHS


IMPORTANT INFORMATION

DIFFERENT key type allows up to 400 codes.

Offset cam height: 9.5 mm (3/8 in.) and 14.5 mm (19/32 in.)

Key removable in the locked and unlocked position.

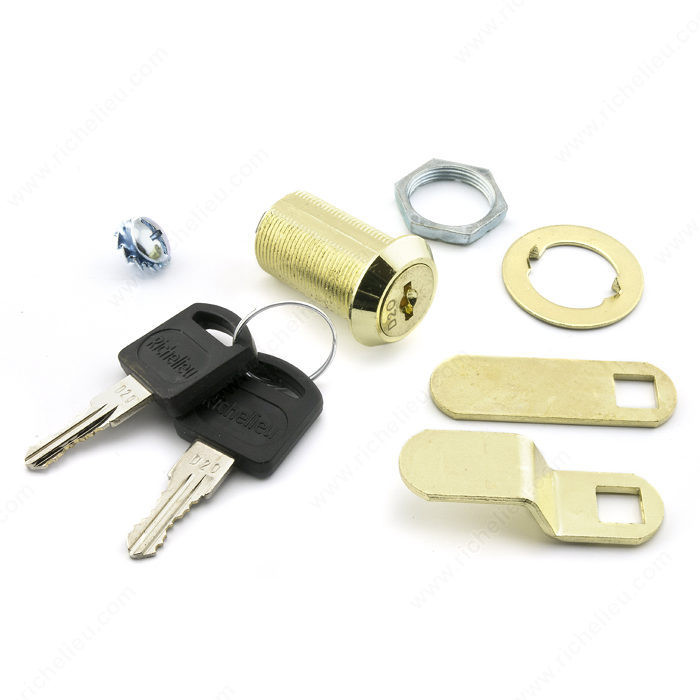

INCLUDED PRODUCT(S)

1 housing
1 stem washer
1 hexagonal collar nut
1 straight cam
1 angled cam (120°)
1 screw
1 eyelet washer
2 keys
