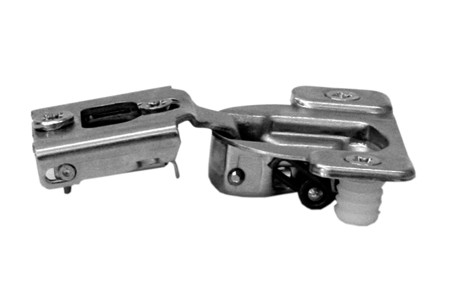

Compact 38N Hinge & Plate, For 1/2" Overlay, Edge Mount, Press-In
$1.10
SKU: 38N358CE08
105D opening angle for partial overlay doors. Can be used with BLUMOTION 971A9700. Steel, nickel plated
One piece assembly
Edge mount
7/16" cup depth
+/- 1/8" height adjustment
+/- 1/16" side adjustment
+3/32", -1/32" cam depth adjustment
One piece assembly
Edge mount
7/16" cup depth
+/- 1/8" height adjustment
+/- 1/16" side adjustment
+3/32", -1/32" cam depth adjustment
