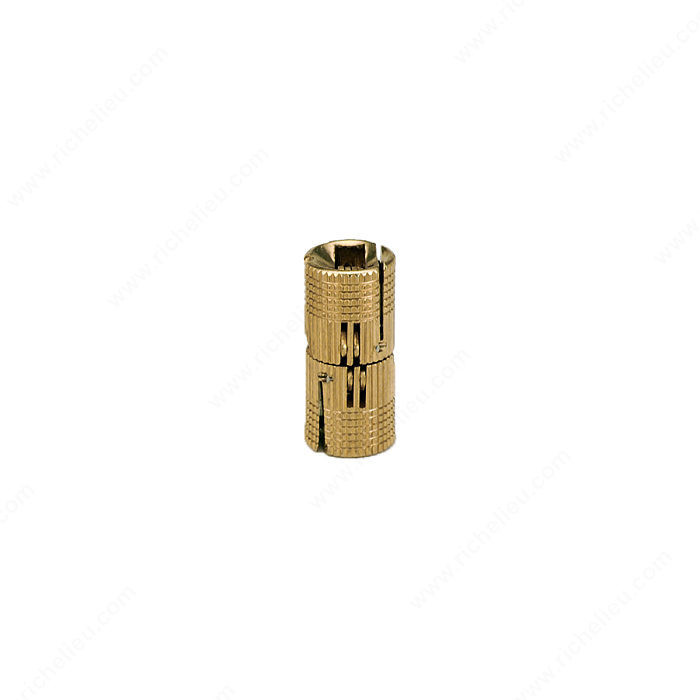

Concealed Brass Barrel Hinge - 420 Series, Invisible when closed, Minimum Door Thickness 3/4 in, Dimension A 14 mm, Dimension B 15.5 mm, Dimension C 23 mm

Richelieu's concealed hinges offer superior appearance and durability with contemporary and functional style. They easily install on light wooden doors to meet many application needs. Not recommended for vertical application.

Minimum Door Thickness3/4 in
Dimension A14 mm
Dimension B15.5 mm
Dimension C23 mm
Dimension D3 mm
Dimension E3 mm
Drill Bit14 mm
Typeof HingeWood Door Only
Finish Brass
Material Solid Brass
Use Type Standard Door
Packaging format Per unit
