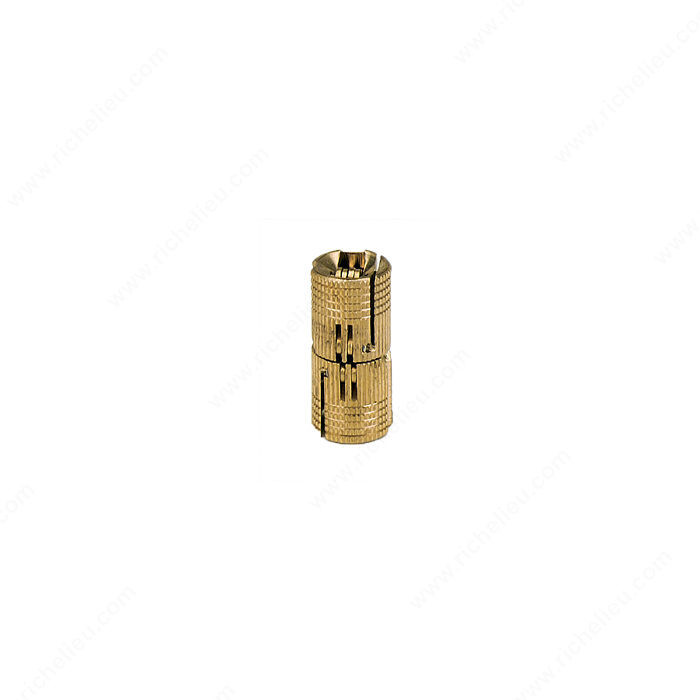

Concealed Brass Barrel Hinge - 420 Series, Invisible when closed, Minimum Door Thickness 5/8 in, Dimension A 12 mm, Dimension B 13.3 mm, Dimension C 19 mm PRO-PACK 2

Richelieu's concealed hinges offer superior appearance and durability with contemporary and functional style. They easily install on light wooden doors to meet many application needs. Not recommended for vertical application.

Minimum Door Thickness5/8 in
Dimension A12 mm
Dimension B13.3 mm
Dimension C19 mm
Dimension D2.7 mm
Dimension E2.1 mm
Drill Bit12 mm
Typeof HingeWood Door Only
Finish Brass
Material Solid Brass
Use Type Standard Door
Packaging format Per unit
