Concealed European Hinge Mounting Plate Drilling Tool,

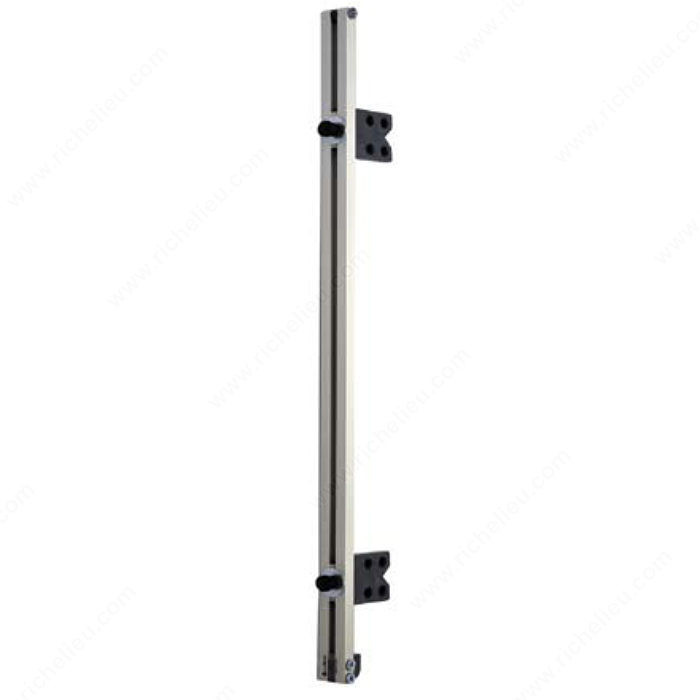

This jig quickly and accurately locates and sets drilling holes for concealed hinge mounting plates on the inside of a cabinet wall. Useful with all brands of European hinges and mounting plates, regardless of the cup size. Works for overlay and inset mounting plate conditions, setting mounting plates for doors up to 50" tall. Extruded aluminum rails, lexan-polycarbonate templates, aluminum bushings.

Typeof TemplateFor Mounting Plate Installation
BrandsEuro Limited
Finish Anodized Aluminum
Material Plastic, Steel, Ceramic Nylon
Length28.75 in
Width4 in
Depth1.5 in
Packaging format Per unit
