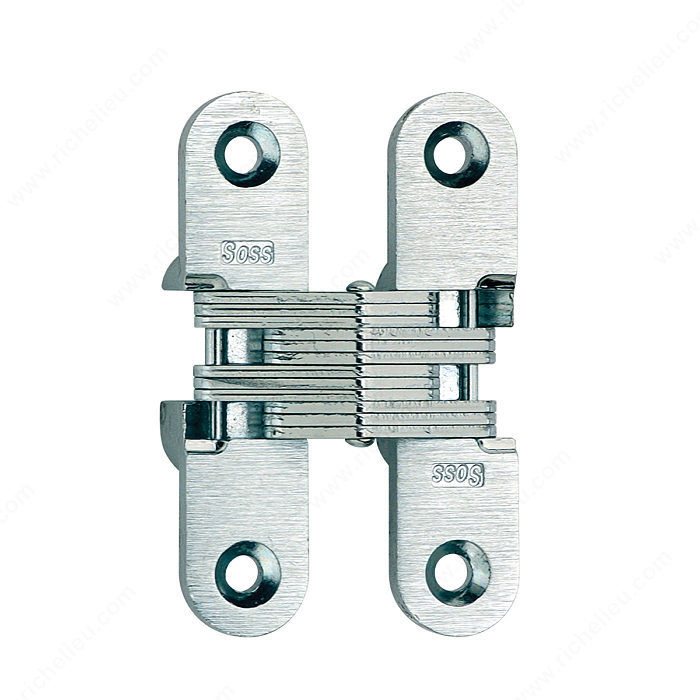

Concealed Steel Hinge - Model #208, The hinge is invisible when closed., Finish Brass

Richelieu's concealed hinges offer superior appearance and durability with contemporary and functional style. They easily install and can be used for many applications on wood or metal doors to meet all your needs.

Finish Brass
Typeof HingeWood or Metal
Minimum Door Thickness1 in
MaterialSteel
Hinge Opening Angle+180?
For Hinge #208
Wood Screw Sizes#8 x 1-1/4" (4.2 mm x 32 mm)
Dimension A5/8 in
Dimension B29/64 in
Dimension C2 3/4 in
Dimension D9/64 in
Dimension E5/32 in
Dimension F1 11/32 in
Dimension G3/64 in
Dimension H29/32 in
Dimension I9/32 in
Packaging format Per unit
