DIY CompX Timberline 3 Drawer Anti Tip System Bundle

DIY CompX Timberline 3 Drawer Anti Tip System Bundle

$49.99
SKU: XTLAT400D3

CompX Timberline drawer anti-tip actuator in conjunction with the drawer clip insures that only one drawer can open at a time so cabinet won't tip.

3 Drawer clips required (TLDC 400)

Click on the installation tab for detailed dimensions

Meets BIFMA standards for strength and durability

  • Lock bar needs to be recessed.
  • Wide tolerance recommendation.
  • Easy to mount and low cost.
  • Minimum 1/2" drawers slide clearance required.
  • Right and left hand mount.

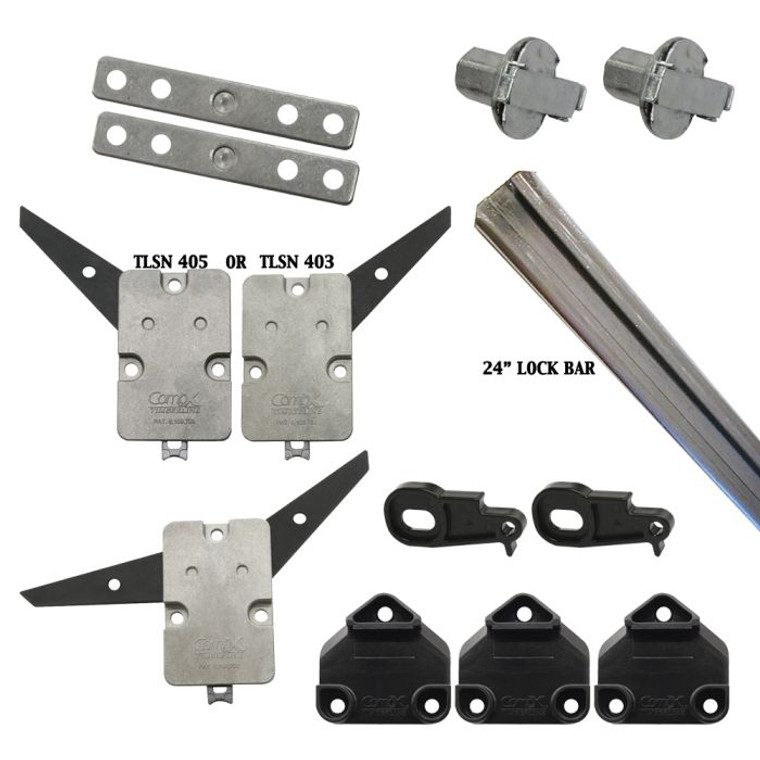

Bundle contains what is needed for a 3 drawer unit.

  • 1 - Double Drawer Actuator - (TLSN 400)
  • 3 - Drawer Clip 1/2" - (TLDC 400)
  • 2 -Anti-Tip Linkage Arm - (TLSN 410)
  • 2 - Lock Bar Retainer - (TLLR 100)
  • 1 - 24" Lock Bar -(TLLB 240)
  • 2 - 3/8" Adjustable Pin - (TLAP 037)
  • Choice of: 1- Actuartor - RtBot/LfTop-(TLSN 403)
    Actuator - LfBot/RtTop-(TLSN 405)
