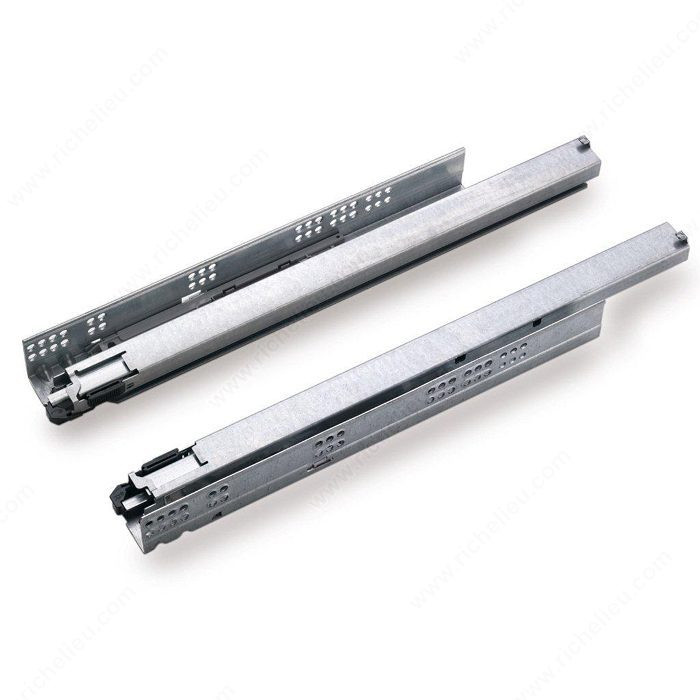

Dynapro 16 Slide 2-D, Slide Length 21 in

- Face Frame and Frameless application for 5/8" (16 mm) drawer material.
- Full extension with a synchronized mechanism.
- Soft-close damping system.
- Maximum connection to drawer slide and front locking device.
- Integrated 2-dimensional adjustment for alignment.
- Height adjustment 3.5 mm with suitable front locking device.
- Side adjustment ? 1.5 mm with suitable front locking device.
- 88 lb load rating (40 kg).* ATTENTION: For FACE FRAME DRAWER APPLICATION - Rear mounting socket # GRDY7950 is needed.

Slide Length21 in
Load Capacity88 lb
Slide ExtensionFull Extension
FinishZinc
BrandGrass
Packaging formatPair
