Euro Hinge Drilling Template, Grass Euro Hinge Drilling Template, Grass GF 13161

GF38207:Used as an aid for finding fence settings on the Grass Unipress hinge boring machine when utilizing the line boring fence to bore system holes in the end panels.
Instructions: Two jigs are recommended. Place the two 5mm studs on the back of the jig into the line bored holes in the end panel where the hinge mounting plates will be located. Position the door with desired reveal at the top and bottom, line boring fence on the machine, thus assuring that the hinges will be centered on the mounting plates. On wall cabinets measure from the bottom of the door.
Packing: 1 per box.

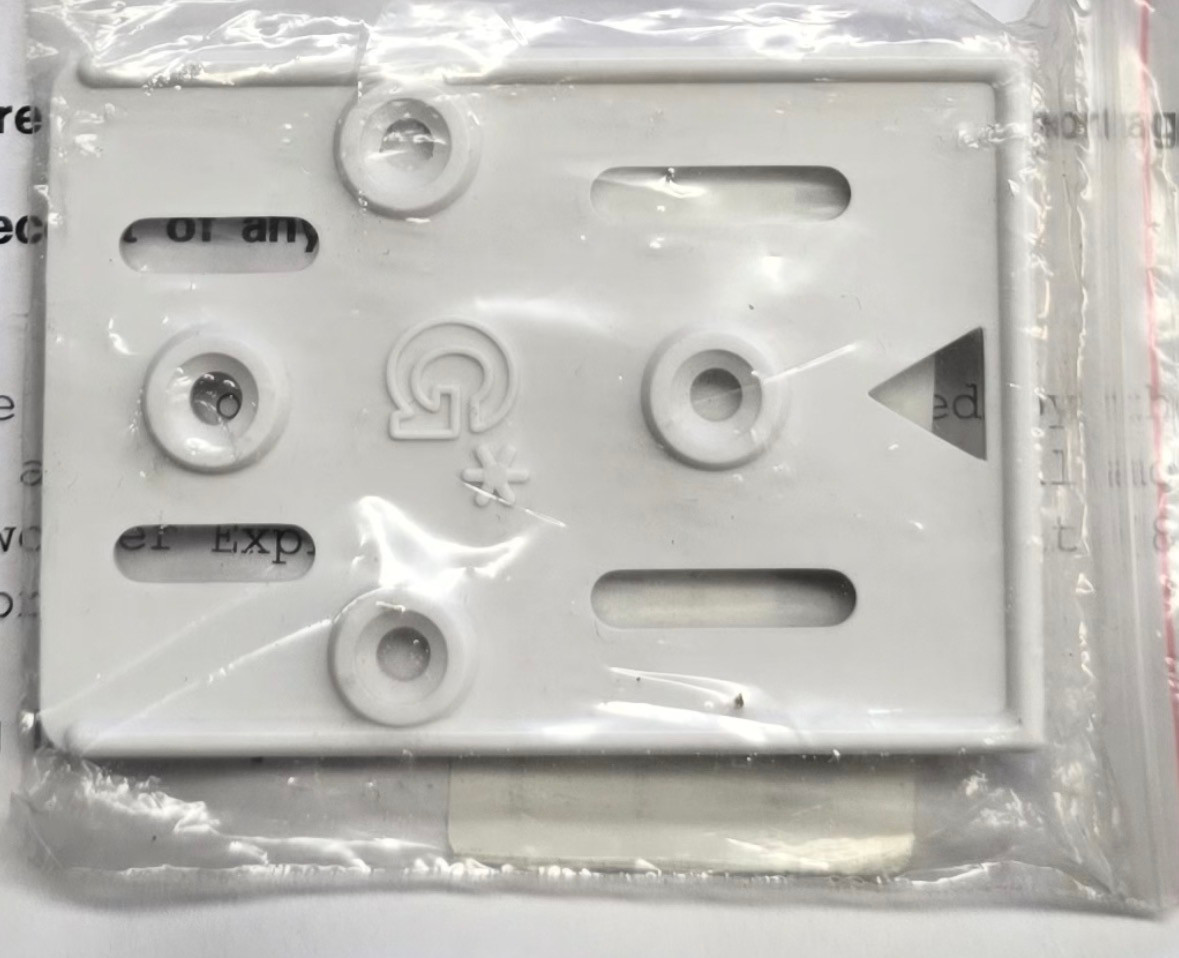

GF13161: Used for straight or winged baseplates. Drill holes directly with Vix Bit. Template is not for inset applications.
Packing: 1 each per box.
GF-AW100A: For baseplate location, as shown in fig. 1, holes (A) will fit for all vertical mounting plates. Holes (B) will fit all straight screw-on mounting plates.
By using screw holes (C) Marking Guide can be used to make your own jig - see fig. 2.
To use jig for cabinets with face frame construction (fig. 4), insert hinge-cup into borehole and determine frame reveal required.
Place door onto the face frame and determine initial location of baseplate.Packing and Sold In: 1 per box.
