Grass Soft Close Face Frame Wrap Around 42mm Boring Pattern Hinge, 108 degree opening, Choose your OL GF027 GF028

Grass Soft Close Face Frame Wrap Around 42mm Boring Pattern Hinge, 108 degree opening, Choose your OL GF027 GF028

SKU:
GF028
$3.99
Write a Review
Current Stock:

Grass America
108° One Piece Face Frame Hinges
Adjustable Soft-Close

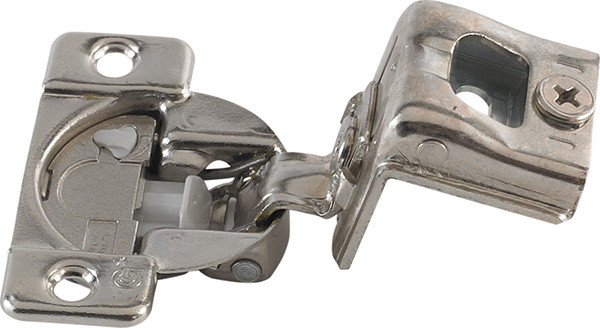

Pictured is 1-1/4"OL

Standard Features:
- Soft-close damper pre-mounted in hinge cup
- Adjustable switch to regulate closing action
- No protruding parts or additional pieces needed
- One piece hinge and base plate combination
- Sleek design with nickel finish and zinc die cast cover over soft-close mechanism
- 108° opening angle
- 10.7mm (7/16") cup drilling depth
- Front locating tabs position hinge on face frame
- 3 dimensional adjustment
- Cam side and depth adjustment with height adjustment at mounting screw
- Works with current insertion machinery
- Available in 42mm and 45mm boring patterns
- Made in USA



Wrap Around 42mm Boring Pattern
EA -0 1 GF02788A-15
Mpn: 02788A-15 		108 1/4" Dowel 42mm Soft-Closing 300 Each
EA -0 1 GF02809A-15
Mpn: 02809A-15 		108 7/16" Dowel 42mm Soft-Closing 300 Each
EA -0 1 GF02824A-15
Mpn: 02824A-15 		108 1/2" Dowel 42mm Soft-Closing 300 Each
EA -0 1 GF02825A-15
Mpn: 02825A-15 		108 3/4" Dowel 42mm Soft-Closing 300 Each
EA -0 1 GF02834A-15
Mpn: 02834A-15 		108 1" Dowel 42mm Soft-Closing 300 Each
EA -0 1 GF02836A-15
Mpn: 02836A-15 		108 1-1/4" Dowel 42mm Soft-Closing 300 Each
EA -0 1 GF02839A-15
Mpn: 02839A-15 		108 1-1/2" Dowel 42mm Soft-Closing 300 Each
