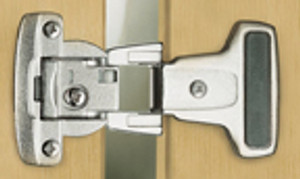

Alternative to nonadjustable 5 knuckle institutional hinges, offers ease of installation, adjustment and clean look
Tool less assembly of the hinge arm to the hinge cup - door is removable
Hinges have a height adjustment of + 2mm and side to side adjustment of 2mm for easy alignment of door edge gaps
Wide 270 degree opening angle on full overlay
All hinge arms include cover caps to conceal mounting screws
Features integrated door catch, keeps doors in closed position without additional hardware
Knuckle features hospital tip design
Available in Bright Nickel Plated or Black finish
Hinge cup (45mm) and hinge arm are sold separately, two types of hinge cups are available: screw-on and dowelled. Four types of arms are available
Meets ANSI/BMHA A156.9-2003 Grade 1 Hinge requirements
