Automatic Opening

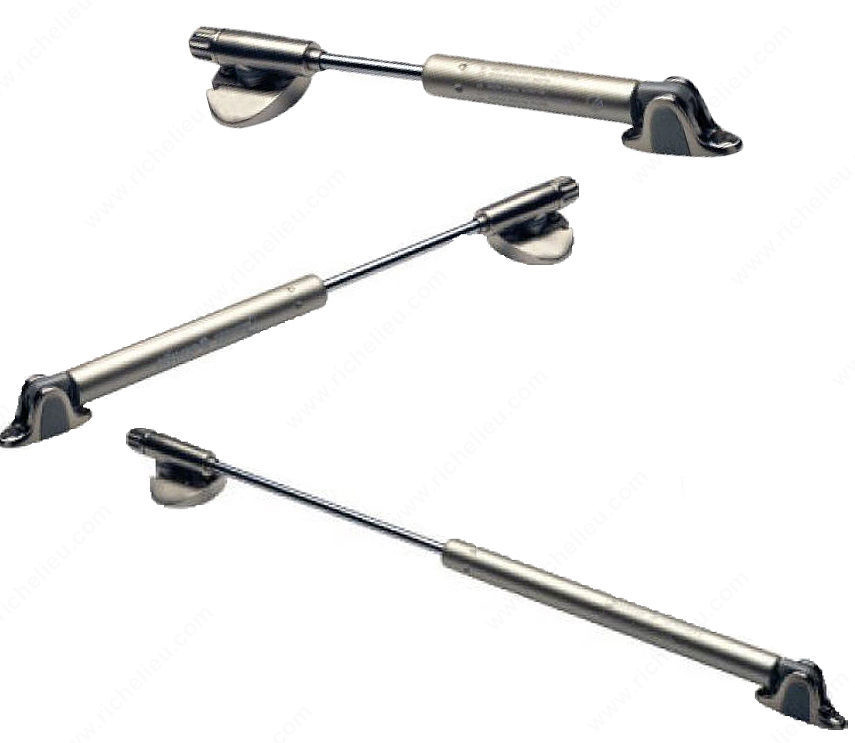

Kraby pneumatic suspension arm is a completely new way to open flap doors. The arm is specially designed for standard automatic drilling processes.
Product number LengthForceForce (N)Opening Angle Adjustability
11159180
164 mm5.1 kg50 Newton83°-103°
11160180
164 mm8.16 kg80 Newton83°-103°
11161180
244 mm5.1 kg50 Newton83°-94°
11162180
244 mm8.16 kg80 Newton83°-94°
11163180
244 mm10.2 kg100 Newton83°-94°
11164180
355 mm12.24 kg120 Newton83°-90°
ADVANTAGES AND BENEFITS
- Designed to be installed using standard automatic drilling processes.
- Offered in several newton strengths to suit small, medium, big and maxi door sizes.
- Can be fixed directly on solid doors or wider aluminum-framed section doors.
- For small aluminum sections, a special adapter (#100013180) is available.
- Automatic opening: Once you begin to open the door, it continues to open gently and completely by itself.
- Align nearby doors using the rotary knob placed on the piston base plate: adjustment of 10mm.
- Change the timing of the opening and closing of the door by adjusting the position of the piston base plate within the "U" slot of the side bracket.
TECHNICAL SPECIFICATIONS
Product number & 11164180
Brand & Italiana Ferramenta
Standards and Certifications & RoHS
APPLICATION
The arm can be installed directly on solid doors or wider aluminum door frames.
