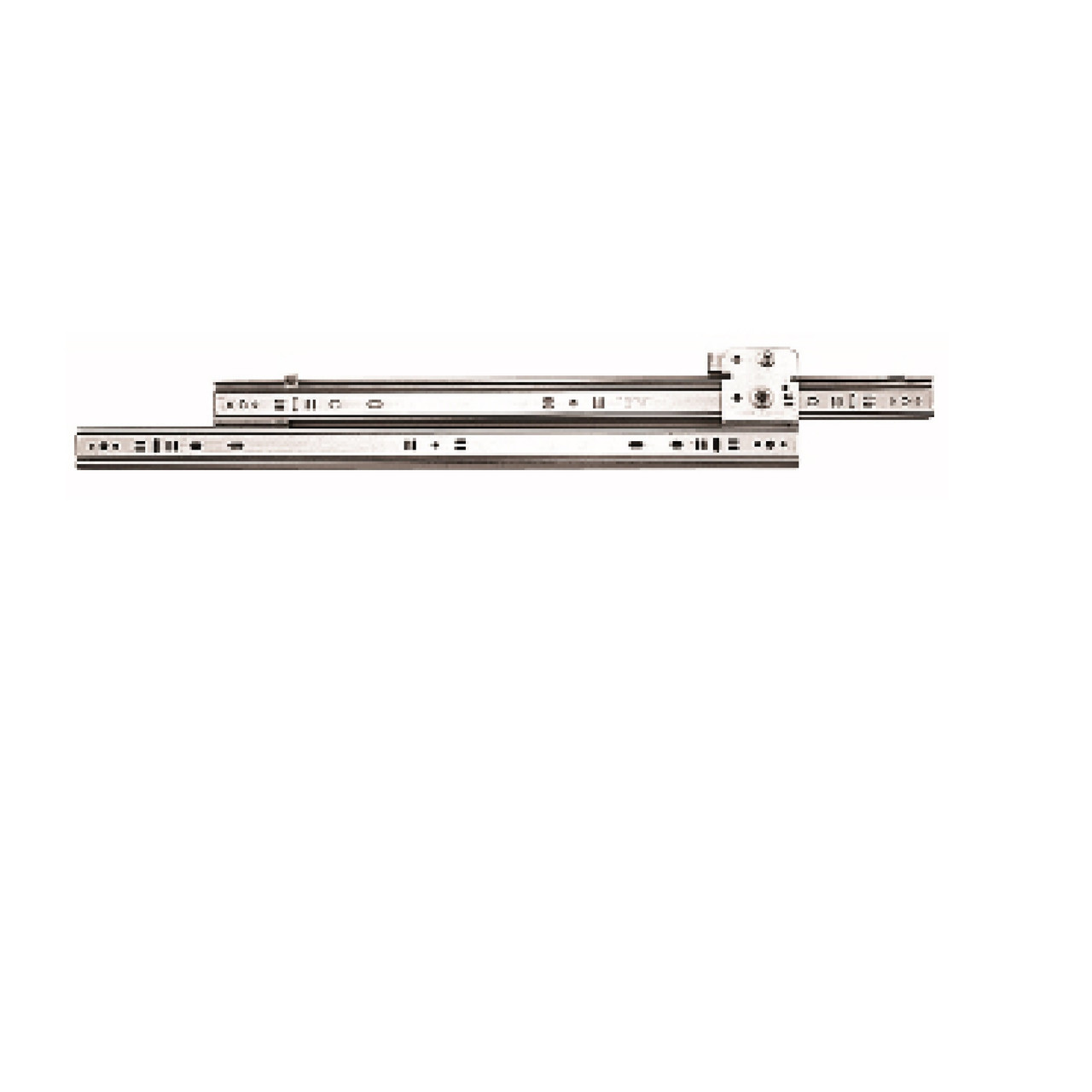

KV 1300 3/4 Extension Drawer Slides 1300B ZC 1300P ZC 75Lb

KV 1300 3/4 Extension Drawer Slides 1300B ZC 1300P ZC 75Lb

SKU:
1300B ZC
$40.99 - $48.99
Bulk Pricing:

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 49 and get 10% off
  • Buy 50 - 99 and get 20% off
  • Buy 100 or above and get 25% off
Write a Review
Current Stock:

Knape and Vogt

Side Mount 75 lb Roller Bearing Slides, Light-Duty
3/4 Extension Lever Release Institutional Drawer Slides
print
• KV Model #1300
• Side Clearance: 1/2" Height: 3"
• 32 mm Pattern: No
• Available finishes: Zinc, Almond and White
• Features: Ball bearing nylon roller movement, positive stop lever prevents accidental drawer removal and stay close design
• Recommended Fasteners: #6 x 13/32" Phillips Pan Head (KV1300-83



KV 1300 3/4 Extension Drawer Slides
• Positive stop lever
• Stay close design
• Recommended maximum drawer width 18”
• Mounting: Side
• Action: Ball-bearing rollers
• Load Rating: 75 lb. class
• Height: 3” [76.2mm]
• Clearance: .50” + .03” - 0” on each side
• Finish: Almond (ALM), White (WH), Zinc (ZC)
• Bulk items sold 10 sets per box only without screws
• Polybag items sold 1 set per bag with screws
1300 Zinc Finish
Length Bulk
Item #
Polybag
Item #
12” --- KV1300P-12
14” KV1300B-14 KV1300P-14
16” KV1300B-16 ---
18” KV1300B-18 KV1300P-18
20” KV1300B-20 KV1300P-20
22” KV1300B-22 KV1300P-22
24” KV1300B-24 KV1300P-24
26” KV1300B-26 KV1300P-26
28” --- KV1300P-28
1300 Almond Finish
Length Bulk Item #
14" KV1300ALMB-14
16" KV1300ALMB-16
18" KV1300ALMB-18
20" KV1300ALMB-20
22" KV1300ALMB-22
1300 White Finish
Length Bulk Item #
18" KV1300WHB-18
20" KV1300WHB-20
22" KV1300WHB-22
1260 Mounting Brackets
Item # Description Box Qty
1 KV1123-PLAS Plastic Rear Mounting Bracket 500
2 KV1303 Vertically Adjustable Side-Mounting Bracket 100
1 3 KV1304 Metal Rear Mounting Bracket 100
