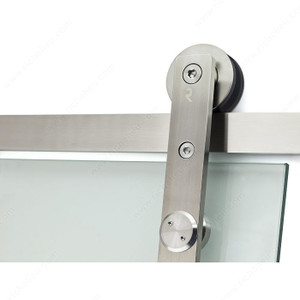

The LOGO is a wall mount/barn door style sliding system with a strap mount trolley, running on a secure stainless steel tube track. A versatile sliding door solution with optional soft-close mechanism and track extensions. The standard system includes a unique component track system that is packed into an easily transported box that can be economically shipped to a job site.
Typeof DoorGlass
Door Thickness10 to 12 mm
Weight Capacity per DoorMax. 80 kg
Door PositionIn Front of Wall
Rail Type 20 mm Rod
Track MountingWall Front Using Brackets
Door Mounting MethodDrill
Roller PositionUpper
Soft-Close Type Soft Stop
Number of Doors1
Door Width28 to 36 in
Roller Type Ball Bearing
Rail Length67 7/8 in
Design IntentStandard Access Door
Finish Stainless Steel
Rail Material Stainless Steel
Rail Finish Stainless Steel
Maximum Door Height2 400 mm
OperationSingle Sliding
Packaging format Box
