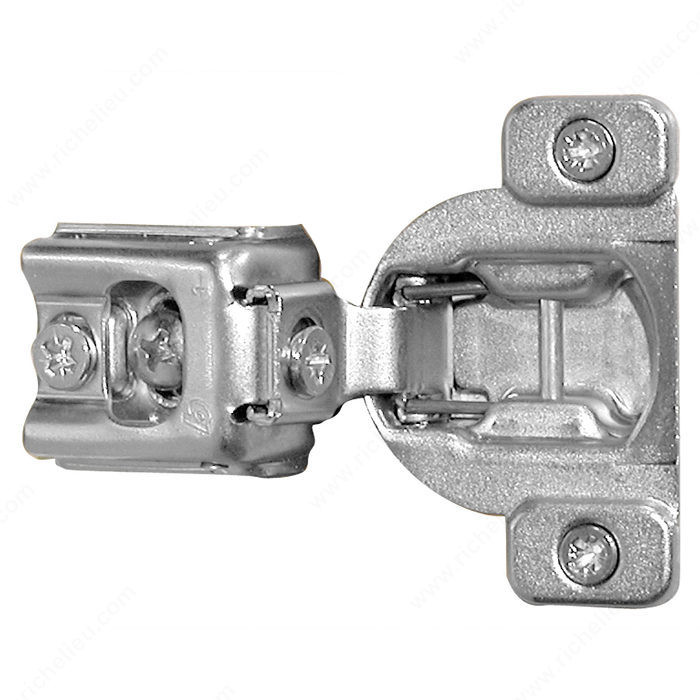

One-Piece Compact 39C Hinge - 110G, Fixing Type Knock-In with Insertion Ram Only, Overlay 1 9/16 in PRO-PACK 5

One-Piece Compact 39C Hinge - 110G, Fixing Type Knock-In with Insertion Ram Only, Overlay 1 9/16 in PRO-PACK 5

SKU:
RI:39C35825180
$10.80
Write a Review
Current Stock:

1/2" cup depth.
1/8" height adjustment.
1/16" cam side adjustment.
3/32" & 1/32" cam depth adjustment.

Fixing Type Knock-In with Insertion Ram Only
Overlay1 9/16 in
Closing MechanismSelf-Closing
Use Type Standard Door
Milling Depth1/2 in
Hinge Type Compact
Cabinet Type Face Frame
Door ThicknessMax. 3/4 in
Mounting Type Wrap-around Mount
Milling Diameter1 3/8 in*
Hinge Opening Angle+110?
Packaging formatPer unit
