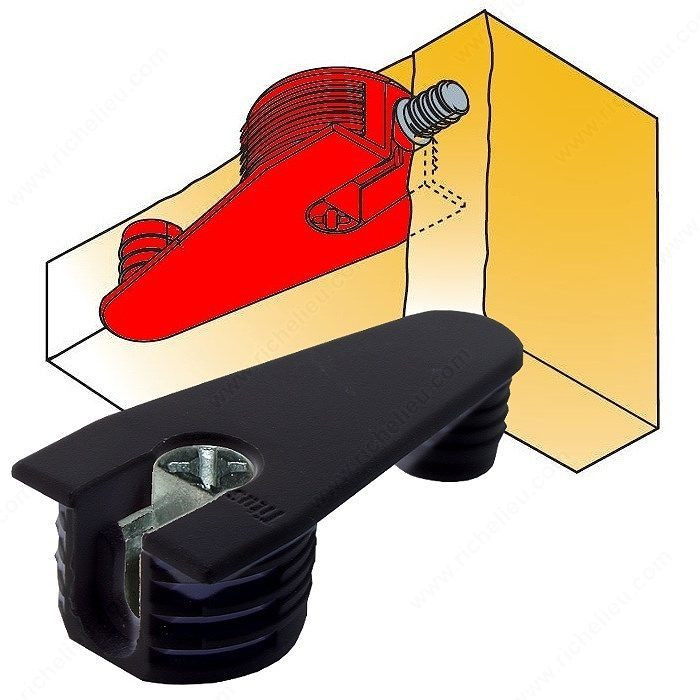

Quickfit-Expando Housing Outrigger - Combined Assembly (front and top), Combined assembly (front and top), Panel Thickness 19 mm, Drilling Depth 14 mm, Finish Black

Quickfit-Expando Housing Outrigger - Combined Assembly (front and top), Combined assembly (front and top), Panel Thickness 19 mm, Drilling Depth 14 mm, Finish Black

SKU:
RI:644590
$19.42
Write a Review
Current Stock:

For increased strength. 10 mm diameter reinforcement dowel located 32 mm from the bracket.

Panel Thickness19 mm
Drilling Depth14 mm
Finish Black
Titus System NumberSystem 6
Drilling Diameter20 mm
Insertion Type Side-Entry
Drive Type Phillips
ApplicationQuickfit-Expando Housing
FlangeWithout Flange
Quantities per case available1250 units
Material Plastic
Packaging format Per unit
