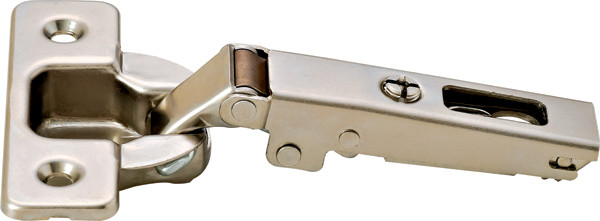

Concealed Hinge, Salice 200 Series, 110° Opening Angle, Full Overlay
For wooden doors up to 26 mm, Self Close, screw mounting, 366/C2P6A99/2z
Product details
Material
Steel cup and hinge arm
Installation
hinge attaches to door without tools
Drilling depth
Hinge cup 11 mm
Adjustment
Side adjustment from -1.5 to +4.5 mm
height adjustment from -2 to +2 mm
depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to 2.8 mm
With automatic closing spring
