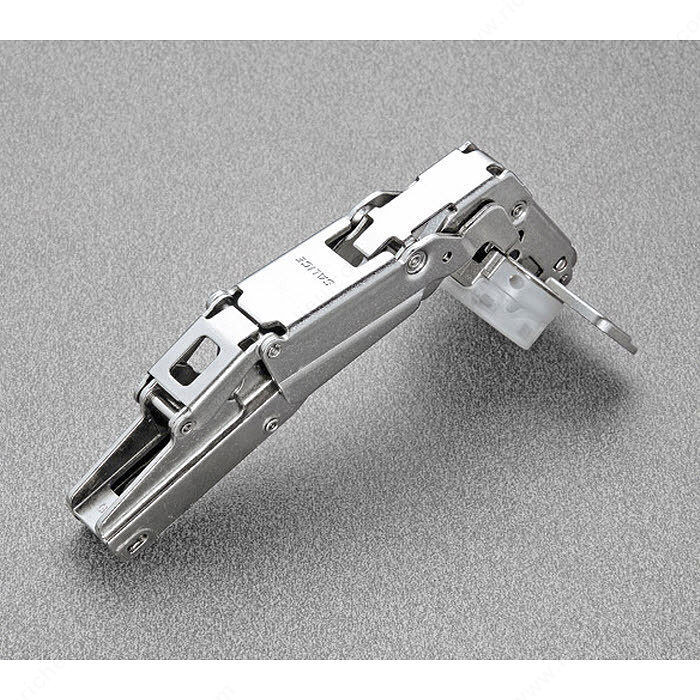

Salice - Concealed Hinge, 200 Series, 165°, full overlay mounting Wooden Doors up to 26 mm, dowel mounting, model C2RFA99 329.07.654
new product
$13.36
Write a Review
new product
Salice - Concealed Hinge, 200 Series, 165°, full overlay mounting Wooden Doors up to 26 mm, dowel mounting, model C2RFA99 329.07.654
-
Zero offset for use with internal pull outs or extending trays
Area of application
For wood doors
Concealed hinge version
full overlay
Crank type
Straight
For door material
wood
Door processing for assembly
with cup drilling
Material
Cup: Zinc alloy, Hinge arm: Steel
Color/finish
nickel plated
Opening angle
165°
Cup drilling depth
11.00 mm
Cup drilling Ø
35.00 mm
Drilling pattern
45/9.5
Adjustment facility
Side adjustment -1.5/+4.5 mm, Height adjustment ±2 mm, depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5/+2.8 mm
Installation
Door on cabinet with slide-on system A or quick fixing system SM
Order reference
Mounting plate sold separately.
