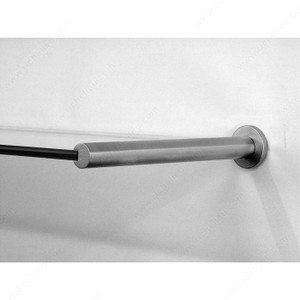

Shelf Support, Glass Shelves, Ø20 mm Wall mounting, visible, Stainless steel, matt brushed

SKU:
283.38.020
$38.99
Write a Review
Current Stock:

Diameter

20.00 mm

Version

Tube wall thickness: 1.5 mm (1/16")

Material

Stainless steel

Load bearing capacity per item

10.00 kg

Note on load bearing capacity

tested in accordance with DIN EN 16337:2013-08 with 1.7 kg plate for impact test, i.e. 20 kg load bearing capacity with surface load and 2 supports with shelf size of 200 x 1000 mm
The specified load bearing capacity applies with proper and reliable attachment to the wall

Adjustment facility

Height adjustment facility: -4 – 4 mm, by turning the support bolt

Installation

For screw fixing to support element
shelf is placed onto shelf support

Installation reference

Distance between supports: max. 700 mm
Load capacity: up to 85 kg (187 lbs) per m2 by evenly distributed loading on the shelf
With assembly instructions
For wall thickness 1.5 mm

Order reference

Packing is one set (2 sets needed for one shelf)

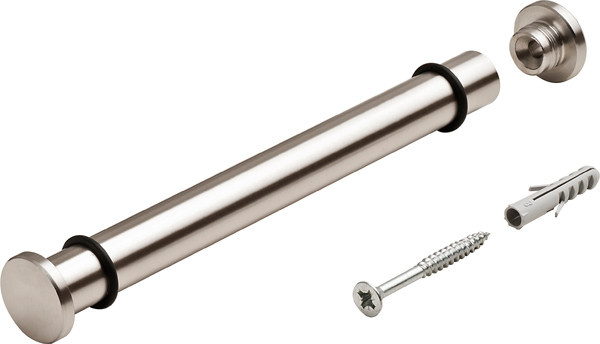

Supplied with

Support, Ø20 mm
Base
2 0-rings
Countersunk head screw M6 x 60 mm
Wall anchor
