D0S7SNG Small Doors Light
D0SHSNG with 2-3 hinges Medium
D0S8SNG with 3-4Hinges High
D0S9SNG with 4+ hinges Super High
Search for mounting blocks-purchased separate
Salice America
Hinge Attachment Soft-Close

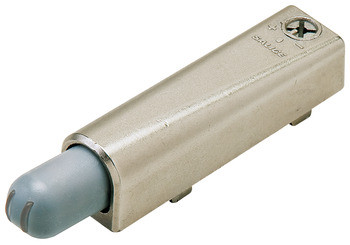

Salice "S" Type Soft-Close Adapters for Hinge Mounting Applications
Standard Features:
- Easy to mount after hinge installation
- The "S" type soft-close device contacts and connects to hinge flange, not to the door (prevents door marring)
- Does not interfere with hinge adjustments
- Low profile: Does not intrude on cabinet interior space
- Adjustable closing speed with turn of adjustment screw
- Only 1 Smove required per door
- Type "S" Smove soft closing devices are available in three tension settings: light, medium and high resistance
- Type "S" Smoves require a separate mounting block to attach Smove soft close device to the hinge flange
- Mounting blocks are available in four heights to accommodate full to half overlay and inset hinge configurations
- Mounting blocks come in two types: one type designed to affix to die-cast hinge plates and the second type is
designed to affix to stamped steel mounting plates
