Product Type Door Guide
Drilling35 mm
Drilling Depth9.5 mm
Door Mounting MethodRecessed
Door Thickness5/8 to 3/4 in
Door PositionInset/Inlay
OperationSingle Sliding
Typeof DoorWood
Weight Capacity per DoorMax. 12 kg

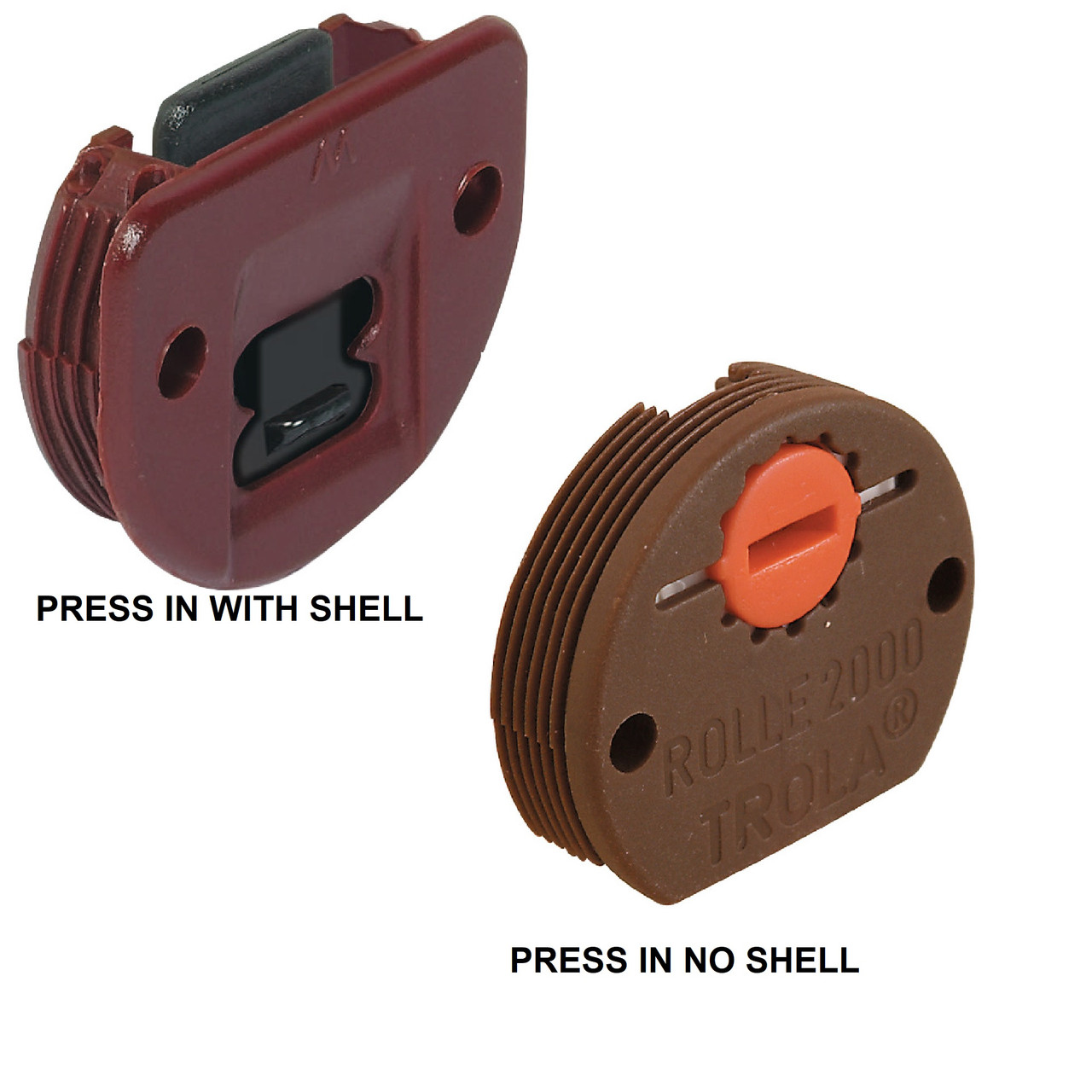

711-Brown Lower Guide HFsampl 73160 404.20.120 no shell
712-White Lower Guide HFsampl 73130 404.20.728 no shell
-Brown Lower Guide HFsampl shell
-White Lower Guide HFsampl shell
718-White Upper Guide HFsampl 404.19.716 no shell
719-Brown Upper Guide HFsampl- 404.19.118 no shell
738-White Upper Guide HFsampl-73030 404.07.716 shell
737-Brown Upper Guide HFsampl-73060 404.07.118 shell
White no Shell | Brown no Shell | White Shell | Brown Shell | |||
Upper Guide | 718 | 719 | 738 | 737 | ||
Lower guide | 734 | 735 | 712 | 711 | ||

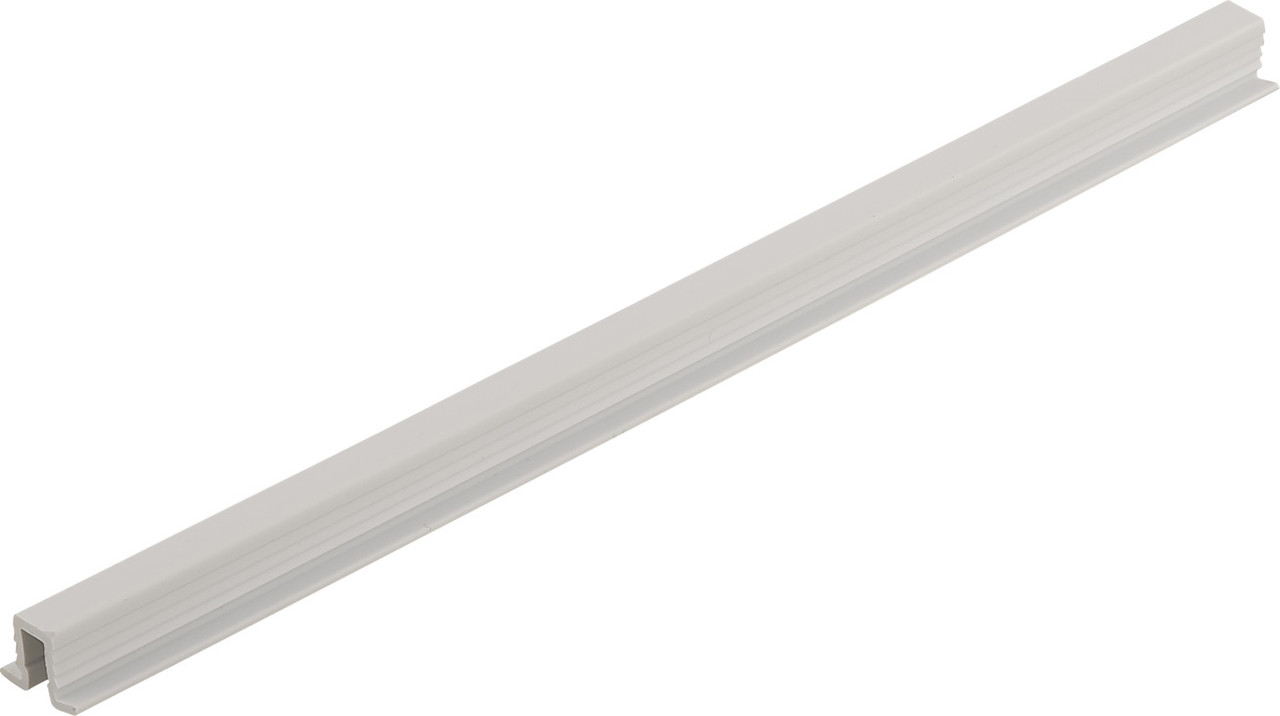

For use with guide tracks: 404.14.111, 404.14.133, 404.14.701, 404.14.713
