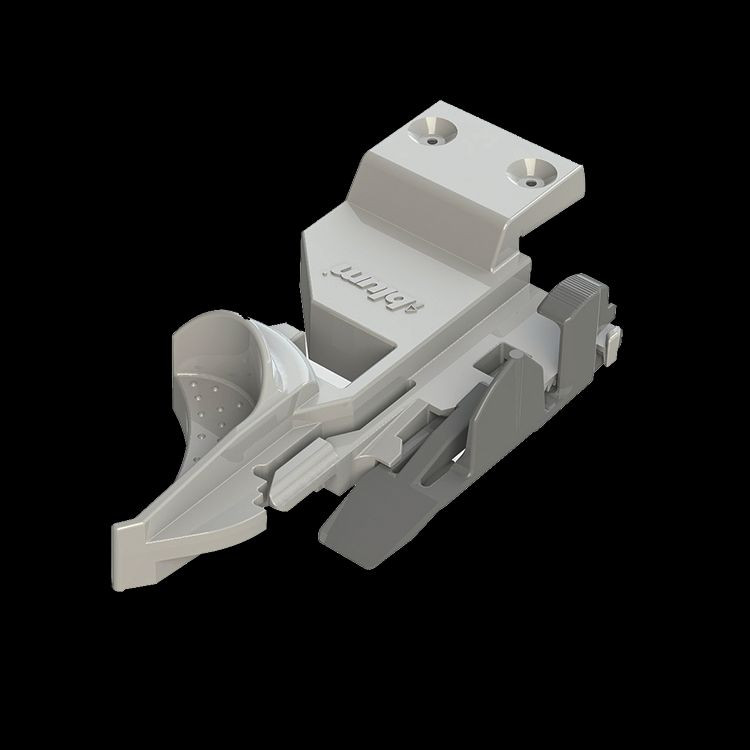

Tandem Locking Device For Narrow Drawers, 563/569, Right

For use with narrow drawers. No side adjustment. Maximum dynamic load capacity 25lb. One right and one left required per drawer.
Captive right device and self-aligning left device
Self-adjusting drawer length tolerance
Minimum inside drawer width 3-3/4" (95mm)
Height adjustment 1/8" (+3mm)
Mininum sub-front thickness 5/8" (16mm)
Designed for 1/2" (13mm) drawer bottom recess
