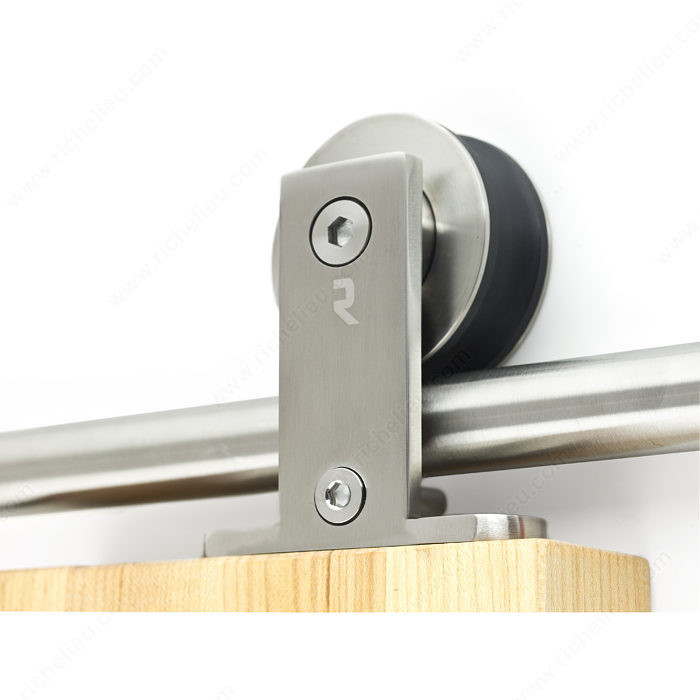

Teknix, Solid steel rail connector in two one- meter sections,

The Teknix top-mounted sliding door hardware provides a functional, versatile and secure sliding door solution while remaining discreet!
The rail connector inserts just over an inch into the solid running rail rod ensuring stability and allowing for a virtually seamless sliding operation.
A sure-fire easy installation with fixation points pre-drilled in the running rail for 16" centers.
As opposed to being mounted on brackets, the system is affixed directly to the wall through the running rail with the combination of spacing sleeves and our lift-locking pin. It therefore eliminates the risk of your door shifting or coming off the track, rendering your space safe for all.

Typeof DoorWood
Door Thickness35 to 45 mm
Weight Capacity per DoorMax. 80 kg
Door PositionIn Front of Wall
Rail Type 20 mm Rod
Track MountingWall Front Using Brackets
Door Mounting MethodScrew
Roller PositionUpper
Number of Doors1
Door Width28 to 34 in
Roller Type Ball Bearing
Rail Length67 7/8 in
Design IntentStandard Access Door
Groove Needed for Guiding SystemYes
Groove Width at the Bottom of Door14 mm
Groove Depth18 mm
Finish Black
Rail MaterialStainless Steel
Rail Finish Black
OperationSingle Sliding
Packaging format Set
